How a Solar Etalon Works: The Optics Behind Hydrogen-Alpha Solar Telescopes - Part 1



I have been building etalons for over 25 years. In that time I have learned that most people who own a hydrogen-alpha solar telescope have at least a passing curiosity about what is actually happening inside the instrument. The etalon is the heart of the scope. Everything else is just a delivery mechanism. So this is my attempt to explain it properly, without dumbing it down.



What an Etalon Actually Is

An etalon is two extremely flat, partially reflective optical surfaces held parallel to each other with a precise gap between them. That is the whole device. The sophistication is not in the concept. It is in the execution.

When light enters the cavity formed by those two surfaces, something interesting happens. Light that bounces back and forth between the surfaces a certain number of times exits in phase with light that bounced a different number of times, but only at specific wavelengths. Every other wavelength cancels itself out through destructive interference. The result is a filter that passes an extremely narrow slice of the spectrum and blocks everything else.

This is a Fabry-Perot interferometer, named after the two French physicists who developed the theory in the 1890s. The version I manufacture is optimized specifically for isolating the hydrogen-alpha line at 656.28 nanometers. That is the wavelength at which hydrogen emits and absorbs light as electrons transition between specific energy levels. Observing the sun at that wavelength reveals the chromosphere, where all the interesting activity happens: prominences, filaments, flares, active regions. White light shows you sunspots. Hydrogen-alpha shows you the sun as a dynamic, living object.



📷  IMAGE COMING SOON Diagram showing constructive vs. destructive interference inside an etalon cavity. Clean educational graphic. Label the cavity gap, the reflective surfaces, and the transmitted wavelength.



The Numbers That Matter

There are three specifications that actually tell you how good an etalon is. Transmission is not one of them, and I will explain why shortly.



FWHM (Full Width at Half Maximum). This is the bandwidth of the filter, measured at the point where transmission drops to half its peak value. For hydrogen-alpha solar observation, narrower is better. My production etalons are specified at 0.6 angstroms FWHM or better. Every unit is tested on a 1.5 meter monochromator before it ships, so that spec is a measured result, not an estimate.



To put 0.6 angstroms in context: the hydrogen-alpha absorption line in the solar spectrum is roughly 0.5 to 1 angstrom wide depending on activity levels. A filter with a bandpass much wider than that starts to let in the photospheric continuum, which washes out chromospheric contrast. The narrower the bandpass, the more you are isolating the chromosphere and rejecting everything around it.



FSR (Free Spectral Range). The etalon does not pass just one wavelength. It passes a series of wavelengths separated by a fixed interval called the free spectral range. For solar work, you need an order-sorting filter alongside the etalon to block all the unwanted transmission peaks outside hydrogen-alpha. The FSR determines how demanding that requirement is. My current etalons have an FSR of approximately 12 angstroms.



Finesse. Finesse is the ratio of FSR to FWHM. It is essentially a figure of merit for how sharp the transmission peaks are relative to how far apart they sit. Higher finesse means better defined, sharper peaks and lower transmission between them. Finesse is a function of the reflectivity of the coatings and the physical quality of the surfaces.



Why Transmission Is Not a Performance Metric

For a long time I chased high peak transmission in my etalons. The logic seemed straightforward: more light through the filter means a brighter image. The sun is bright. Better throughput is better.

That thinking was wrong, and I will give credit where it is due. Competition in this industry forced me to look more carefully at the relationship between reflectivity, transmission, and bandpass. What I found was that I had been optimizing for the wrong thing.

Here is the physics: peak transmission in a Fabry-Perot etalon is determined by the reflectivity of the coatings and the absorption losses in the cavity. Higher reflectivity coatings produce higher finesse, which narrows the FWHM, but they also reduce peak transmission. The two are in direct tension. If you push reflectivity up to tighten the bandpass, transmission comes down.

For solar observation this tradeoff is entirely acceptable. The sun is not a faint object. You are not photon-limited. What you are contrast-limited by is a wide bandpass letting in too much of the adjacent photospheric spectrum. A narrower bandpass with lower transmission gives you a darker, higher-contrast chromospheric view. The image may be dimmer, but the detail is dramatically better.

My current etalons run 87% reflectivity coatings with a 0.007 inch cavity gap. The FWHM that results from those parameters meets the 0.6 angstrom specification. Etalon technology does not stand still, and I will say only that we are continuously refining both coating specifications and gap geometry as materials and process capabilities improve.



📷  IMAGE COMING SOON Graph or diagram showing the relationship between reflectivity, FWHM, and peak transmission in a Fabry-Perot etalon. Illustrative, not actual data. Labels in plain language.



Substrates and Surfaces

The etalon plates themselves start as fused silica substrates. Fused silica has low thermal expansion, excellent optical homogeneity, and does not introduce the surface irregularities you get with some borosilicate glasses. Before any coating goes on, the substrate has to be flat. My production spec is better than lambda/50 surface quality across the full aperture. Lambda/50 at 633 nanometers is a surface deviation of about 12 nanometers. To put that in perspective, a human hair is roughly 70,000 nanometers in diameter.

Surface quality matters because any departure from flatness degrades the parallelism of the two cavity surfaces and therefore degrades the finesse. All the precision in the coating process is wasted if the substrate underneath is not flat enough to support it.

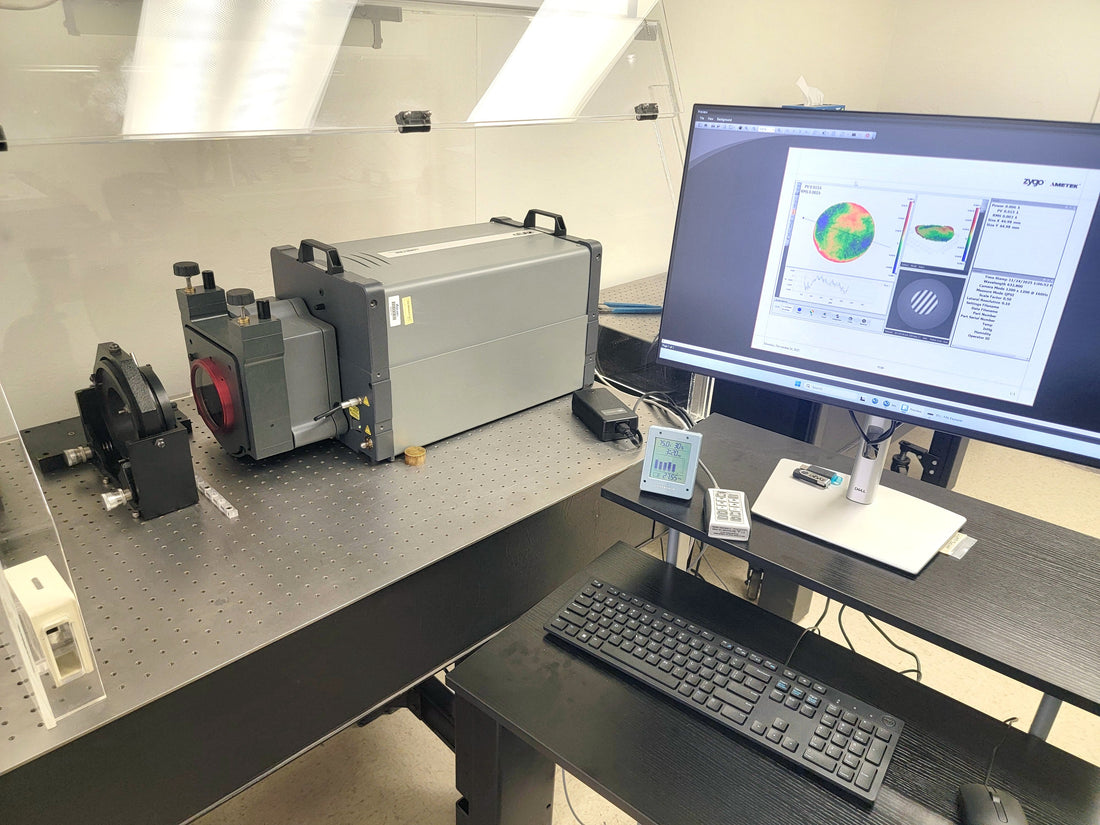

Substrate preparation involves precision grinding and polishing, ultrasonic cleaning, and environmental conditioning before the coating process begins. We use interferometric testing throughout to verify surface quality. Final surfaces are inspected before assembly and rejected if they do not meet specification.



Optical Coatings

The reflective coatings are deposited using ion-assisted electron beam evaporation in a high vacuum chamber. The ion assist process gives better adhesion and denser coating layers than standard evaporation alone, which matters for long-term durability and stability.

Each dielectric layer is monitored in real time during deposition using an optical thickness monitor. The tolerances are tight because the final reflectivity and therefore the final finesse depend on hitting the designed layer thicknesses accurately. A deviation of a fraction of a percent in any single layer propagates through the stack.

The coating stack uses alternating high and low refractive index dielectric materials. The specific materials are chosen for their optical properties at 656 nanometers, their thermal stability, and their adhesion characteristics. Coating stress is managed through layer design and deposition parameters to avoid deforming the substrate after the plates come out of the chamber.



📷  IMAGE COMING SOON Photo of the coating chamber or deposition process at the Lunt facility. Clean room or lab setting. Shows the manufacturing environment.



Assembly and Parallelism

Getting two optically flat surfaces precisely parallel across the full aperture, and holding them there indefinitely, is the central mechanical challenge in etalon manufacturing. The cavity gap in my etalons is 0.007 inches, which is about 178 microns. The parallelism of the two surfaces across that gap has to be maintained at a level that preserves the designed finesse.

Assembly uses laser interferometry to set and verify parallelism during the process. The mounting system is designed to hold the optical surfaces without introducing stress that would distort them. Stress-induced distortion is a real failure mode, and the mounting geometry has to account for differential thermal expansion between the optical elements and the mechanical structure holding them.

Each assembled etalon is tested spectrally before it leaves the building. That test report confirms performance against the specification. If it does not meet spec, it does not ship.

Every Solar Telescope manufactuered at Lunt is tested on the Sun to assure it meets the high standards we have for all our products.

Part 2 of this article covers the pressure tuning system: why the conventional approach to tuning an etalon involves either using direct mechanical compression or heating the cavity, what Lunt does instead, and why that matters for practical solar observation.



CONTINUED IN PART 2:  Pressure Tuning: How Lunt Moves a Wavelength Without Mechanical Stress
