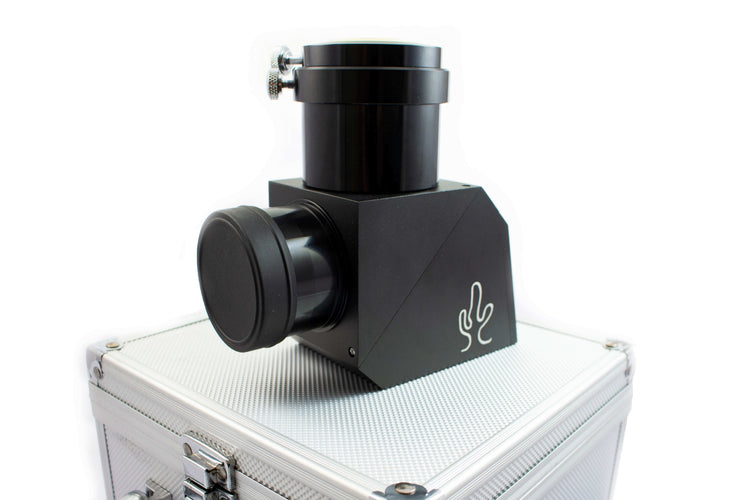

2″ Lunt White Light Solar Wedge
2″ Barrel for professional Solar-Photography and White Light solar observation. Polarizing Filter Sets are optional. For photo-visual use we recommend 1 pc ND 3.0 (included) and 1 2″ Polarizing Set.
Package Includes:
• 2″ Lunt White Light Solar Wedge
• 2″ ND3 Pre-installed Filter
• Metal Carrying Case
• Die Cut Foam with room for Accessories
Recommended Accessories:
• 2″ Polarizing Filter Set (US$149)
• 2″ to 1.25″ Reducer for 1.25″ Eyepieces (US$20)
No. LS2SP/HW
US$288.00 (Includes ND3)
( contact us directly or buy from dealer )
Starlight 2” Feather Touch Focuser with 1.5” travel
The Starlight Instruments 2″ Feather Touch Focuser with 1.5″ travel included adapter for all on LS60THa and LS60TCaK telescopes.
The Feather Touch Focuser has been redesigned! We built on the original and made it even better. All running parts are now HARDENED STAINLESS STEEL on HARDENED STAINLESS STEEL. This greatly improves the smoothness, wear characteristics and it’s robustness. This new design will virtually not wear out and moves with even greater smoothness and precision than the original model. It is still an absolute must for CCD imaging and astro-photography in addition to making visual use a joy.
Standard Features:
• Ultra-smooth coarse/fine focus knobs (10:1 Ratio)
• Glare resistant black internal baffling
• Durable hardened stainless steel, steel, and aluminum construction
• Anodized aluminum fine focus knob
• Standard Draw Tube with nylon
• tipped stainless steel set screws (gentle on eyepieces)
• Ultra-Low backlash system for accurate control
• 52mm threaded Draw Tube to accommodate filters
• Sleek aesthetic design
Technical Informations:
• Focuser travel: 1.5 inch
• Minimum focus height: 35,56 mm
• Focuser height with adapterplate: 40,64 mm
• Focus repeatability: 0,01 mm
• Backlash: 0,0 mm
• Fine focus reduction: 1,778 mm per step
• Lifting capability: 2,5 kg = 5,5 lbs
No. SLF1.5
Price $422.00
( contact us directly or buy from dealer )
Zoom Eyepiece 7,2mm – 21,5mm
Technical Specifications:
• Focal length: 7,2mm – 21,5mm
• Barrel size: 1,25″
• Diameter: 47mm
• Height: 82mm
• Eye relief: 15mm
• Lenses / Groups: 7 lenses / 4 Groups
• Field of view: 7,2 53° – 21,5mm 40°
No. LSZoom7.2-21.5
Price $149.00
( contact us directly or buy from dealer )

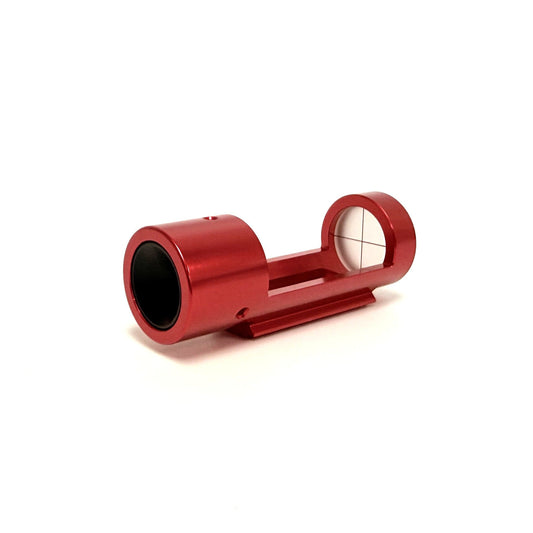

Sol Searcher
“I can’t find the Sun!” Sounds funny. However, the Sun is tricky to find in a properly filtered telescope, and you don’t ever want to chance a direct gaze, let alone a magnified image of it.
Sol-Searcher is the safe and easy way to find the Sun. It is absolutely safe since you don’t look through Sol-Searcher, you look at it. The aperture acts as a “pinhole” which projects an image of the Sun on to the 1/4″ translucent “screen.” This screen can be viewed from either side. Simply move your scope until the Sun’s image is centered on the screen and the Sun will be in the eyepiece’s field of view.
No. TV001
Price $29.00
Dovetail bar 100mm
The Lunt Dovetail bar. The telescope connecting screws are US 1/4-20 inch size and they do not look out of the rail, which makes this rail a perfect match for Vixen like and similar mounts.
Technical Data:
• Material: Black Anodized Aluminum
• Length: 100 mm
• Thread: 4 x 1/4-20 inch with 2 connecting screws
No. LS100PS
Price $35.00
( contact us directly or buy from dealer )
Dovetail bar 150mm
The Lunt Dovetail bar. The telescope connecting screws are US 1/4-20 inch size and they do not look out of the rail, which makes this rail a perfect match for Vixen like and similar mounts.
Technical Data:
• Material: Black Anodized Aluminum
• Length: 150 mm
• Weight: 194 gr.
• Thread: 4 x 1/4-20 inch with 2 connecting screws
No. LS150PS
Price $40.00
( contact us directly or buy from dealer )
Dovetail bar 300mm
Lunt Dovetail bar. The telescope connecting screws are US 1/4-20 inch size and they do not look out of the rail, which makes this rail a perfect match for Vixen like and similar mounts.
Technical Data:
• Material: Aluminum and Stainless Steel
• Length: 300 mm = 11.81 inch
• Weight: 381 gr. = 0.84 lbs
• Thread: 4 x 1/4-20 inch with 2 connecting screws
No. LS300PS
Price $55.00
( contact us directly or buy from dealer )
Adapter for 1.25″ for Blocking Filters
Adapter 2″ to 1.25″ for blocking filters.
No. ADP2-1.25
Price $20.00
( contact us directly or buy from dealer )
Adapter Plates
For LS50FHa (see “LS50F Adapter“)
For LS100FHa (see “LS100F Adapter“)
You may also be interested in: (see “merchandise“)
- Lunt Solar Hat
- Lunt Solar Polo or Tank Top Shirt
No-one brings you closer to our nearest Star than Lunt Solar Systems… the next generation of Solar Instrumentation.
About Lunt Solar Systems LLC…
Lunt Solar Systems is a manufacturing and sales facility located in Tucson, Arizona. Lunt Solar design, fabricate, assemble, and test solar telescopes and solar filters. Whether you are looking for a dedicated solar telescope or a solar filter for attachment to you own astronomy telescope, we can help. Solar telescopes models start at $499 for an LS35T (telescope) or the only slightly more expensive LS50F (filter), all the way thru the 152T and the 160F. Solar observing is both fun and educational. Don’t miss out on Solar Maximum.
